Highlights
Map your dives automatically on Dive Shearwater.
• GPS coordinates on your dive entry and exit points will be captured.
Compatible with ALL current Shearwater air integrated dive computers.
GPS works on the Perdix 2, Petrel 3, Peregrine TX, Teric, Tern TX & NERD 2.
Teric firmware release is releasing a few weeks later.
Teric firmware release is releasing a few weeks later.
Share with your buddy or a boat full of divers.
• Any nearby Shearwater air integrated computer can pick up the Swift GPS signal.
Features

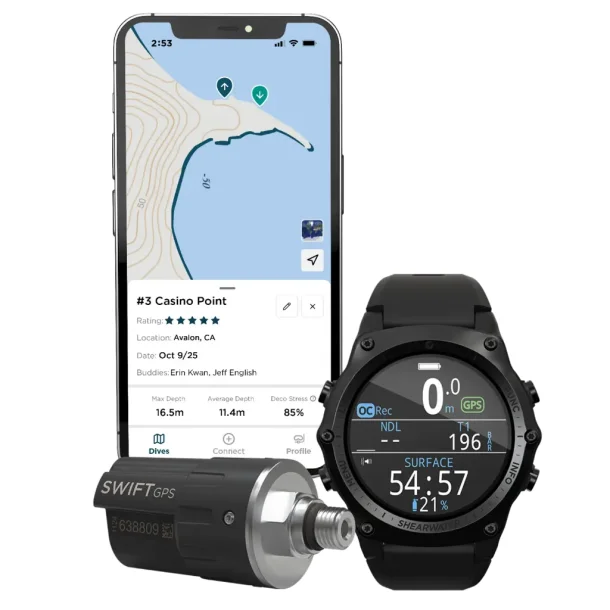

When the dive log is transferred to Dive Shearwater, the log will display:
• Your dive location on a map
• A location name (if available)
• Entry and exit coordinates
• A world view of all your dive log locations
• If a user has multiple transmitters, only 1 needs to be GPS.
Plus, all standard features of SWIFT:
• Advanced collision avoidance system ensures reliability using multiple transmitters• Randomized transmit interval allows for reliable simultaneous use of multiple Swift
transmitters
• LED status indicator
• Easy ‘no tools’ installation and removal on divers first stage
• Compatible with all existing air integrated Shearwater dive computers
Technical Specs
• Depth limit: 200 m
• Operating temperature range +4°C to +34°C
• Short-term (hours) temperature range: -10°C to +50°C
• Long-term Storage temperature Range: +5°C to +20°C
• Pressure port: 7/16" -20UNF
• Rated air pressure: 300 bar / 4350 psi
• Pressure reporting resolution: 0.14 bar / 2 psi
• Pressure reporting interval: 4.8 - 5.2 seconds
• HP port proof pressure: 450 bar / 6525 psi
• Accuracy: 5% full scale
• Zero offset: <3.5 bar / 50 psi
• Activation pressure: 7 bar / 100 psi
• De-activation pressure: 3.5 bar / 50 psi
• Cover screws: 1.5mm hex 316SS
• Body o-ring: 24x1.5mm
• HP port o-ring: AS568-904 75A Viton
Dimensions
• Size 76mm (L) x 34mm (D)
• Weight 135g
Battery
• Battery type: CR2 3V Lithium (User replaceable)• Ships with and recommended battery type: Panasonic CR2 Industrial
Lithium
• Battery Capacity (approx): 2.55 Wh
• Battery life: Up to 100 dive hours (100 one-hour dives, with 20 minutes GNSS on-time before
and after each dive) or 2 year storage time
GNSS
• GNSS Constellations: GPS L1C/A, Galileo E1B/C, BeiDou B1l
• Location resolution: 2 m
• Location accuracy (condition dependent): 4 m
• Location reporting interval: 4.8 - 5.2 seconds
